Dual Wall vs Single Wall Heat Shrink: Why Adhesive Matters
Dual wall vs single wall heat shrink comes down to one thing: what is on the inside. Single wall tube is one layer of plastic that shrinks and grips. Dual wall heat shrink has a second, inner layer of heat-activated adhesive that melts as the tube shrinks, fills the gaps around the wires and bonds to them.
That inner layer is the difference between a join that looks neat and a join that stays dry. If your wiring lives under a 4x4, on a trailer, in a caravan boot or on a boat, it is the part that matters most. Here is how the two types compare, when single wall is still fine, and how to shrink dual wall tube so the adhesive actually seals.
Quick answer: Use dual wall (adhesive-lined) heat shrink anywhere water, dust, salt or vibration can reach the join. Use single wall for indoor jobs, bundling, labelling and anything you may need to undo later. Every heat shrink tube Solderstick sells is adhesive-lined dual wall.
What single wall heat shrink is
Single wall heat shrink is one layer of cross-linked plastic, usually polyolefin. Heat it and it shrinks down around whatever is inside. It insulates, adds some abrasion and strain relief, and tidies up a bundle of wires. Common general purpose tube, such as TE's RNF-100, is this type, usually in a 2:1 ratio.

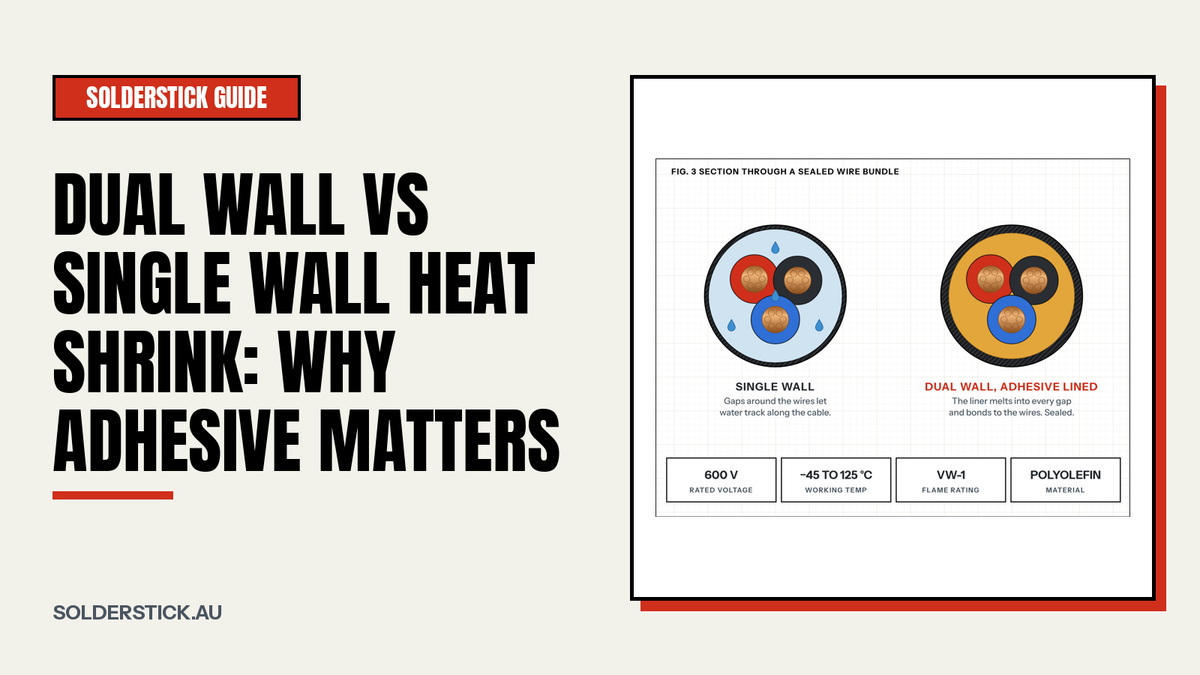

What it does not do is bond. The tube grips the outside of the cable, but there are always small gaps: along the strands of a join, in the valleys between two wires, and at the step from the join down to the insulation. Water can wick into those gaps, especially on joins that get wet, dry out and get wet again.
What dual wall heat shrink is
Dual wall heat shrink has two layers made together. The outer layer is the same kind of cross-linked polyolefin as single wall tube. The inner layer is a thermoplastic adhesive, sometimes called hot melt or glue lining. As the outer wall shrinks, the inner layer melts and is pushed into every gap, then sets as it cools.
Manufacturers describe the result as a moisture seal. TE says its ATUM adhesive-lined tube bonds to a wide range of plastics, rubbers and metals, including polyethylene, aluminium, steel and copper. 3M describes the adhesive in its EPS-300 dual wall tube as forming a water resistant barrier once cooled, for automotive and marine use. Because it is designed to seal, dual wall heat shrink usually comes in higher ratios such as 3:1 and 4:1, so it can close down over uneven joins.
Dual wall vs single wall heat shrink compared
| Feature | Single wall | Dual wall (adhesive-lined) |
|---|---|---|
| Layers | One shrinking plastic layer | Shrinking outer layer plus melting adhesive inner layer |
| Seals out water | No, grips only | Yes, adhesive fills gaps and bonds |
| Typical ratios | Mostly 2:1, some 3:1 | Commonly 3:1 and 4:1, heavy wall up to 6:1 |
| Flexibility after shrinking | More flexible | Stiffer, holds its shape |
| Strain relief | Some | Better, the join is locked in place |
| Easy to remove later | Yes, slits off cleanly | Harder, adhesive stays on the cable |
| Best for | Indoor wiring, bundling, labelling | Automotive, marine, caravan, outdoor and buried-in-harness joins |
Why the adhesive matters on 12V wiring
Many failed connections on vehicles and boats are not broken wires. They are joins where moisture got in, the copper turned green, and resistance crept up until a light flickered or a fridge cut out. The adhesive layer attacks that problem directly.
- It blocks the path in. With the gaps filled, water has nowhere to wick along the strands.
- It locks the join. The set adhesive holds the wires against vibration and stops the tube sliding along the cable.
- It spreads the stress. The stiffer, bonded section moves the bending point away from the join itself, which is where wires tend to fatigue.
If you are chasing an existing fault, our guide to fixing corroded wiring connections covers how far to cut back before you rejoin.
When single wall heat shrink is still fine
Single wall tube is not a bad product, it just has a different job. It is a sensible choice for:
- Wiring inside a dry cabin, dash or electronics case.
- Colour coding and labelling cable ends.
- Bundling a few wires together where no join is underneath.
- Covering a soldered joint on a bench project that will never see weather.
- Jobs you expect to pull apart and change later.
If there is any chance of water, condensation, road spray or salt, step up to dual wall.
Heavy wall heat shrink: dual wall with extra armour
Heavy wall tube is a thicker version of adhesive-lined tube. It still has the inner adhesive, but the outer wall is built much thicker for abrasion and impact resistance. Solderstick's 6:1 heavy wall is an extra heavy duty black tube supplied at 33mm that recovers to 5.5mm, so one piece can cover a large connector body and still close down on a modest cable.
Use heavy wall where a cable is exposed to rubbing or knocks: under a ute tray, along a trailer drawbar, at a winch or near hull fittings. Expect it to take longer to heat through and to finish stiffer than thinner tube.
How to shrink dual wall heat shrink so it seals
The adhesive only seals if it melts properly, so technique matters more with adhesive-lined tube than with single wall.
- Disconnect the battery negative or otherwise isolate the circuit.
- Slide the tube on before you make the join. Cut it long enough to overlap the insulation each side (10 to 15mm is a good rule of thumb), allowing for the tube getting a little shorter as it shrinks.
- Clean off grease and dirt where the adhesive will bond.
- Use a heat gun. Start in the middle and work outwards to push air out of the ends.
- Keep the heat moving all the way round until the tube is tight and a thin ring of adhesive shows at both ends. That is the usual sign the lining has flowed.
- Let it cool before you move or clip the cable. The adhesive is soft while hot.
A lighter or torch is a last resort, because it can scorch the outer wall before the adhesive inside has melted.
Solderstick connectors are dual wall in miniature
A Solderstick connector works on the same idea. It is a clear polyolefin heat shrink tube with a low-temperature solder ring in the middle and coloured sealing rings at each end. Heat it and the solder flows through the join while the tube shrinks and the sealing rings close off both ends. The result is rated IP67, meaning dust tight and able to withstand temporary immersion. Our IP67 guide explains what that does and does not cover.
Loose dual wall tube then handles the jobs a connector does not, such as sealing over crimped lugs, ring terminals, plug backs and repaired cable sheath.
Which should you use?
- If you're joining wires under the bonnet, under the vehicle or on a trailer, use adhesive-lined tube or a Solderstick connector.
- If you're wiring anything on a boat, use dual wall, and use tinned marine cable. See our marine wiring guide.
- If you're sealing a lug or terminal onto cable, use 4:1 dual wall sized to slide over the barrel.
- If the cable will be rubbed or knocked, use 6:1 heavy wall.
- If you're labelling or bundling wires inside a dry cabin, single wall is fine.
Not sure which size? Our heat shrink sizing guide maps each tube to what it fits, and heat shrink ratios explained covers 3:1, 4:1 and 6:1 in detail. Solderstick products are for low-voltage work only. Never use them on 230/240V mains wiring, which in Australia must be done by a licensed electrician.
Frequently asked questions
What is the difference between single wall and dual wall heat shrink?
Single wall heat shrink is one plastic layer that shrinks and grips. Dual wall heat shrink adds an inner adhesive layer that melts as it shrinks, filling gaps and bonding to the cable to keep moisture out.
Is dual wall heat shrink waterproof?
Properly shrunk adhesive-lined tube forms a moisture seal around the join, which is why it is used on automotive and marine wiring. The seal depends on the adhesive fully melting, so heat until it shows at both ends.
Is adhesive-lined heat shrink the same as dual wall?
Yes, in most catalogues the terms mean the same thing: a shrinking outer wall with a melting adhesive inner wall. Heavy wall tube is a thicker version of the same idea.
Can you remove dual wall heat shrink?
You can slit it off with a sharp blade, but the adhesive tends to stay stuck to the cable. If a join will need changing later and it is in a dry spot, single wall may be easier.
Do I need heat shrink over a solder seal connector?
No. The connector is already a sealed heat shrink tube with sealing rings at each end. Add a larger sleeve over the top only if you want extra abrasion protection.
What temperature does dual wall heat shrink need?
It varies by product. As an example, TE lists a minimum shrink temperature of 80°C and full recovery at 125°C for its ATUM range. A heat gun handles this easily, so always follow the heat until the adhesive appears at both ends.
What to use
Every tube in our heat shrink collection is adhesive-lined dual wall polyolefin in 150mm lengths: 3:1 in clear and white, 4:1 in black, white and red, and 6:1 heavy wall in black. The listed specs are a 600V rating, a working temperature of -45 to 125°C, VW-1 flammability and dielectric strength of at least 15kV/mm. For a spread of sizes in one order, grab the Ultimate Heat Shrink Bundle, and add a 50PCS Solderstick connector kit for wire-to-wire joins. Free express shipping Australia wide, with orders by 1pm dispatched the same day.
