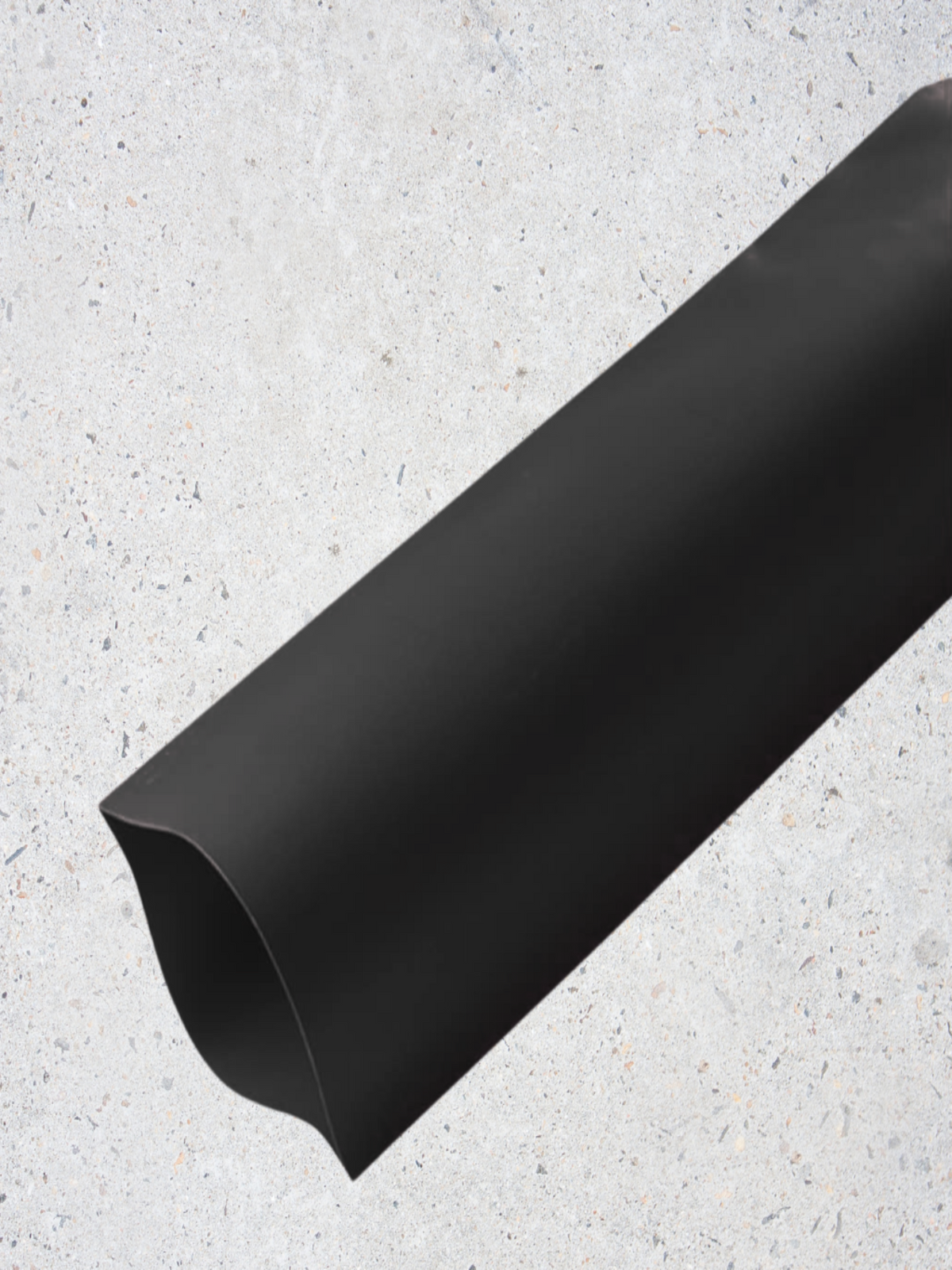

9 Pieces - Black heat shrink with a 32mm supplied inner diameter that shrinks down to approximately 8mm, this tubing provides a large shrink ratio, making it suitable for applications where you need to cover irregular shapes, larger connectors or cable joins.
Heavy-duty 4:1 Dual Wall Heat Shrink Tube with an adhesive-lined inner wall for sealing, insulating and protecting electrical connections.
FREE EXPRESS SHIPPING AU WIDE

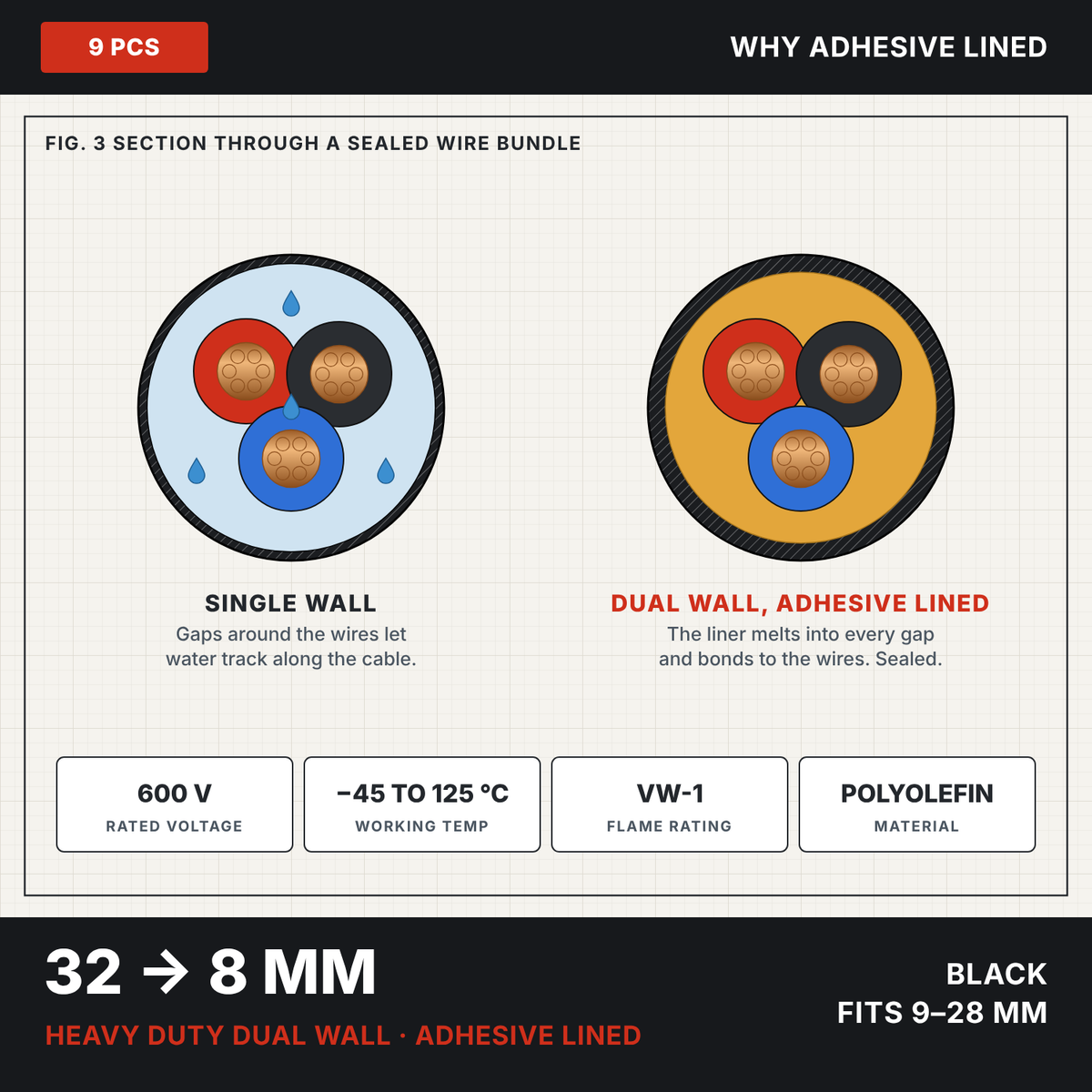

The dual-wall construction combines an outer heat-shrink layer with an inner adhesive layer. When heated, the tubing contracts around the connection while the inner adhesive helps seal and protect the area.
Each piece is supplied in a convenient 150mm length, making it easy to cut to the size required for your project.
Key Features:
- Type: Dual Wall Heat Shrink

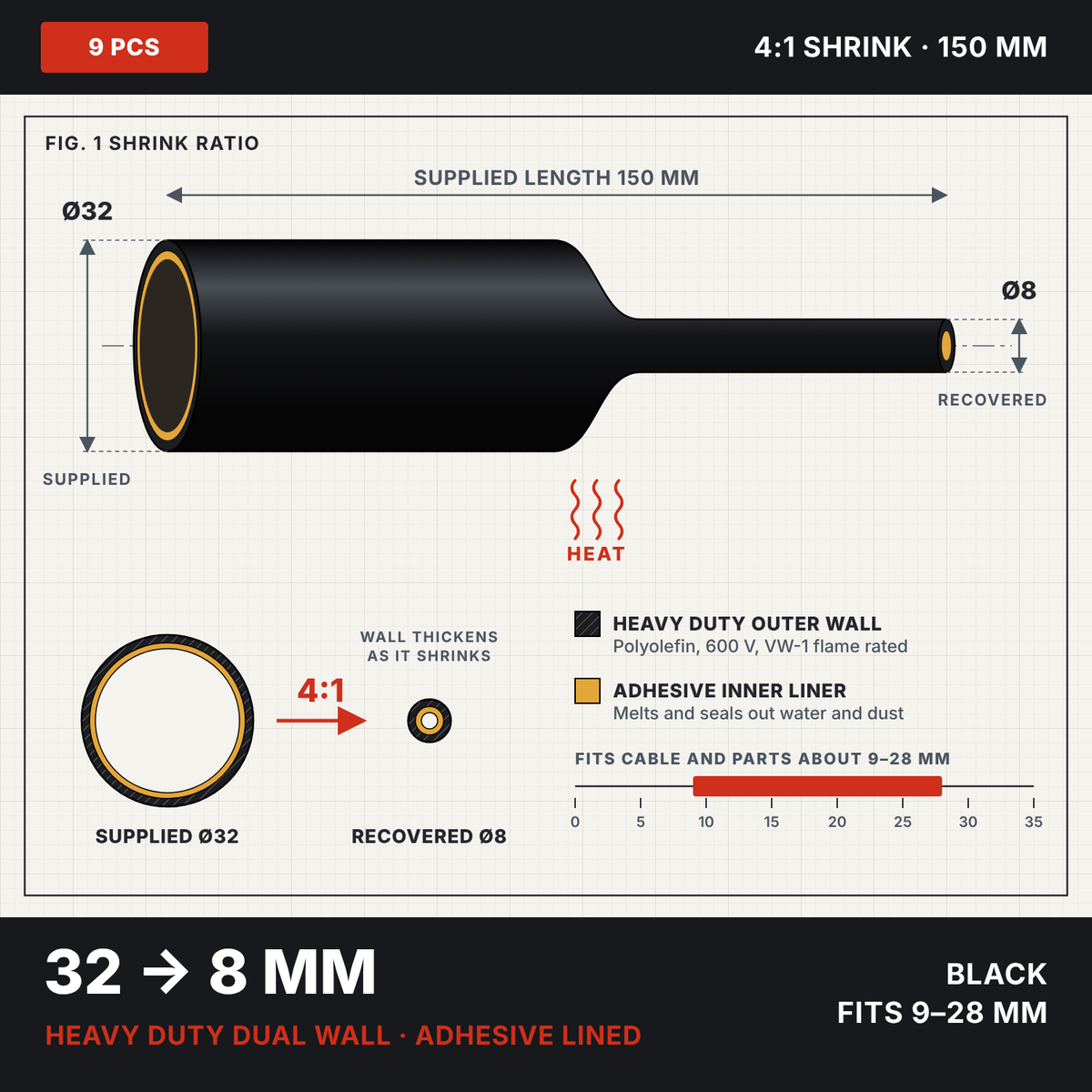

- Shrink Ratio: 4:1
- Black
- Length: 150mm
- Supplied Inner Diameter: 32mm
- Recovered Inner Diameter: 8mm
- Adhesive-lined inner wall

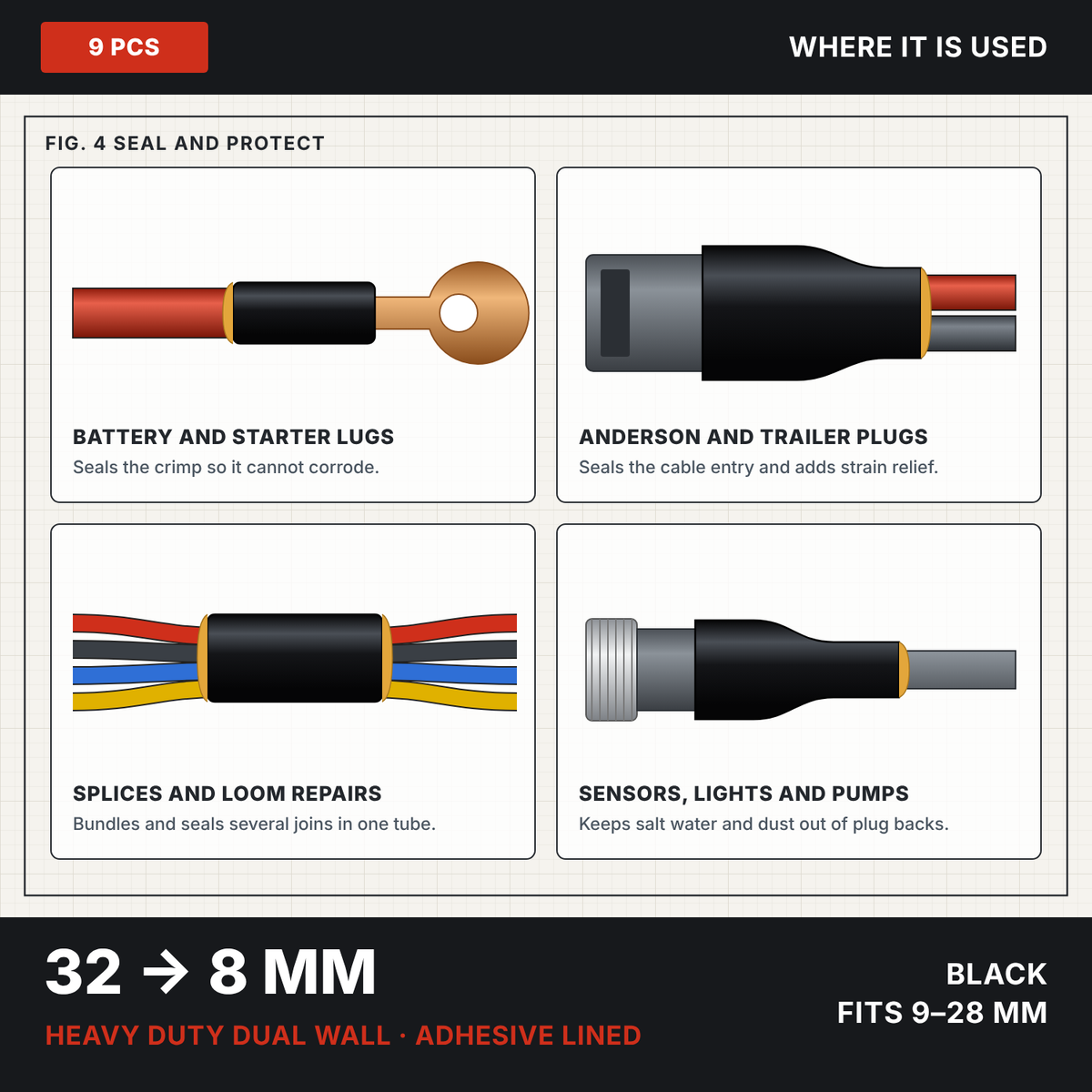

- Ideal for sealing, insulating and protecting cable joints and connections
Specifications:
| Features | Data |
| Rated Voltage | 600V |
| Type | Insulation Sleeving |
| Material | PE, Polyolefin |
| Application | Low Voltage |
| Tensile Strength | ≥10.4Mpa |
| Work temperature | -45 to125℃ or 135 ℃ |
| Fammability | VW-1 |
Shipping: FREE EXPRESS SHIPPING AU WIDE
👌 They're perfect for
a Christmas or birthday gift for a DIYer, shops, offices, warehouses, trades, 4X4's, boats & marine wiring, cars, farmers, trucks, motorbikes, golf carts, quad bikes, jetskis, overlanding, repair kits, campers, caravans, audio, security installs, sparkies, commercial properties and any other DIY 12v & 24v electrical projects
🎓 HOW TO USE IT
STEP 1: Slide the connector onto one of the wires
STEP 2: Twist or intermix the two stripped wire ends
STEP 3: Slide the connector over the joint
STEP 4: Heat the solder first then the ends
Orders received before 2pm are shipped the same day from the Gold Coast, Queensland Australia. We only bill in $AUD as we are based in Australia and ship AU express post from QLD. We ARE NOT based in USA.
We ship all orders using the Australia Post Express service for fast, Australia-wide coverage.
- Next day within the Express Delivery Network, view here:
- https://auspost.com.au/sending/delivery-speeds-and-coverage
- The Express Delivery Network is the network within which Australia Post guarantees next-business-day delivery for Express Post items.
- Same state: 1-2 business days
- Interstate: 1-3 business days
- Outside the Express Delivery Network the delivery times view here:
- https://auspost.com.au/content/dam/auspost_corp/media/documents/express-post-domestic-delivery-estimator.pdf
- Contact us using the contact us form
- We will email or phone you back (whichever method you prefer) and help resolve it.
- Homeowners
- Business owners
- Car Owners
- 4x4 owners
- Truckies
- Builders
- Tradies
- Baby Boomers - rich buggers
- Gen X - grumpy bastards
- even Millennials can, if they try :-)
- Zoomers - will save us
Anyone can use them you will just need a heat gun or a small butane torch.
Check out the solderstick how to videos above, or:
STEP 1: Slide the connector onto one of the wires
STEP 2: Clean the stripped wire ends with an abrasive
STEP 3: Intermix or twist the two stripped ends
STEP 4: Preheat the joint
STEP 5: Slide the connector over the joint
STEP 6: Melt the solder first, then the adhesive ends (expels any vapour before sealing)
TIP: To double insulate, add heat shrink over the top of the completed solderstick connection
A heat gun or a butane torch (just watch the concentrated heat when using the butane torch (or wave it around like a crazy person to melt the tubing, adhesive & solder)
No, don't have to in order get a good connection, but you can use it to see if you get additional solder flow through the joint for even better penetration. We have tried this and have found that preheating and flux can help the solder flow through the joint.
Yes, solderstick are IP67 rated and we use a thick polyolefin tube to provide a good, waterproof seal.
DIY electrical projects, shop repairs, warehouse repairs, super handy for fix all farmers to keep in your rquick fix kit, great for tradies, super handy to have in emergency repair kit parts, car, truck, 4x4, utes, campers, trailer, boat, caravans, audio installations, security system installs, electricians and 12 & 24V electrical and audio wiring joints.
